Manufacturing Solutions Industries has discovered an interesting way to save time and money for organizations training apprentices in the art and science of pipe welding. MSI designs, engineers, and builds the latest technology for automatically beveling a pipe end. This proved to be a very important discovery for many trade schools and union apprentice programs in that it allowed him to automate the production of test pipe coupons for his students to use to practice welding.

The typical apprentice program lasts a number of years with welders doing a lot of practicing. This extensive training requires the production of a whole lot of test pipe coupons. Most schools bevel the coupons (or prepare the ends of the pipe with the proper angle for welding) by using an oxygen fuel cutter, some type of CNC machine, or even by hand. These process are time consuming and make relatively poor quality edges for his students to bevel, requiring more weld prep time and less weld instruction time for the students.

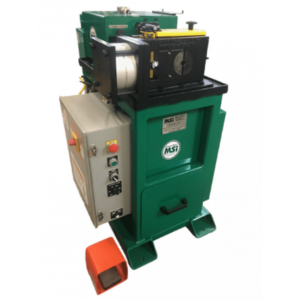

Enter the MSI Chamfermate automated pipe beveling systems. One of the managers of a union apprentice program has this to say about the ChamferMate. “Since purchasing the C8H from MSI we have seen a tremendous increase in test coupon quality with cleaner edges, while producing the pipe bevel samples in far less time for significantly less money. Not only is our quality much improved but the time to make them has decreased. Our students now have much better samples to work from and it helps us educate them on how to properly weld a beveled pipe”.

ChamferMate® high production chamfering machines and pipe beveling machines are designed for easy setup and operation. Heavy duty construction and quality components are utilized to provide our customers with years of dependable service. Models available for a wide range of diameters and applications such as chamfering, beveling, and deburring.

Where ChamferMate® Machines Are Used

Training programs are one application. The same machines run every day in fabrication shops and fastener plants.

Weld Test Coupons for Training Programs

The C8H ChamferMate® is a top choice for UA Pipefitters JACT apprenticeship programs, trade schools, and community colleges preparing weld test and training coupons, including super heavy wall coupons. Cycle times run 12 to 20 seconds, and standard tooling typically lasts several hundred to several thousand cycles before replacement, depending on the material and wall thickness. As Don Stunkel, Training Coordinator at UA Local 501 Plumbers & Pipefitters, put it: “We expect this machine to pay for itself in saved time, pipe, and gases in under 2 years.” For more on the process, see faster pipe prep for weld test coupons.

Pipe Fabrication and Contracting

The C8H is also widely used in pipe fabrication, construction, refrigeration, mechanical contracting, petrochemical, and military applications. For smaller heavy-wall pipe and tubing, the hydraulic C5H ChamferMate® machines J-bevels and other custom bevels. Louis Falgout, Vice President of Gulf Coast Fabricators, says using the ChamferMate for pipe beveling eliminates hand grinding and speeds up their fabrication process.

Fastener and Stud Bolt Production

MSI started in the fastener and stud bolt industries. The C3A ChamferMate® chamfers, deburrs, points, and turns down bolts, studs, and bar from 1/2 in. to 3 in. OD in cycles that normally run 2 to 5 seconds. The C3A-M chamfers and stamps bolts and studs in one process.

Tube Deburring and Chamfering

The pneumatic C5A ChamferMate® deburrs and chamfers solid parts up to 5 in. OD and bevels tubing up to 3/8 in. wall. It is not recommended for heavy-wall tube or pipe beveling.

Automated Pipe Beveling Benefits

Benefits of our chamfering machines and pipe beveling machines include:

  • No more hand-grinding or torching of weld bevels
  • Automated pipe beveling machines are many times faster than portable units
  • Cycle normally in the 5-20 second range
  • Safer than handgrinding
  • Accurately machines weld bevel and faces pipe square
  • Sturdy construction and quality materials for years of dependable service
  • Pipe beveling machines have low operating costs
