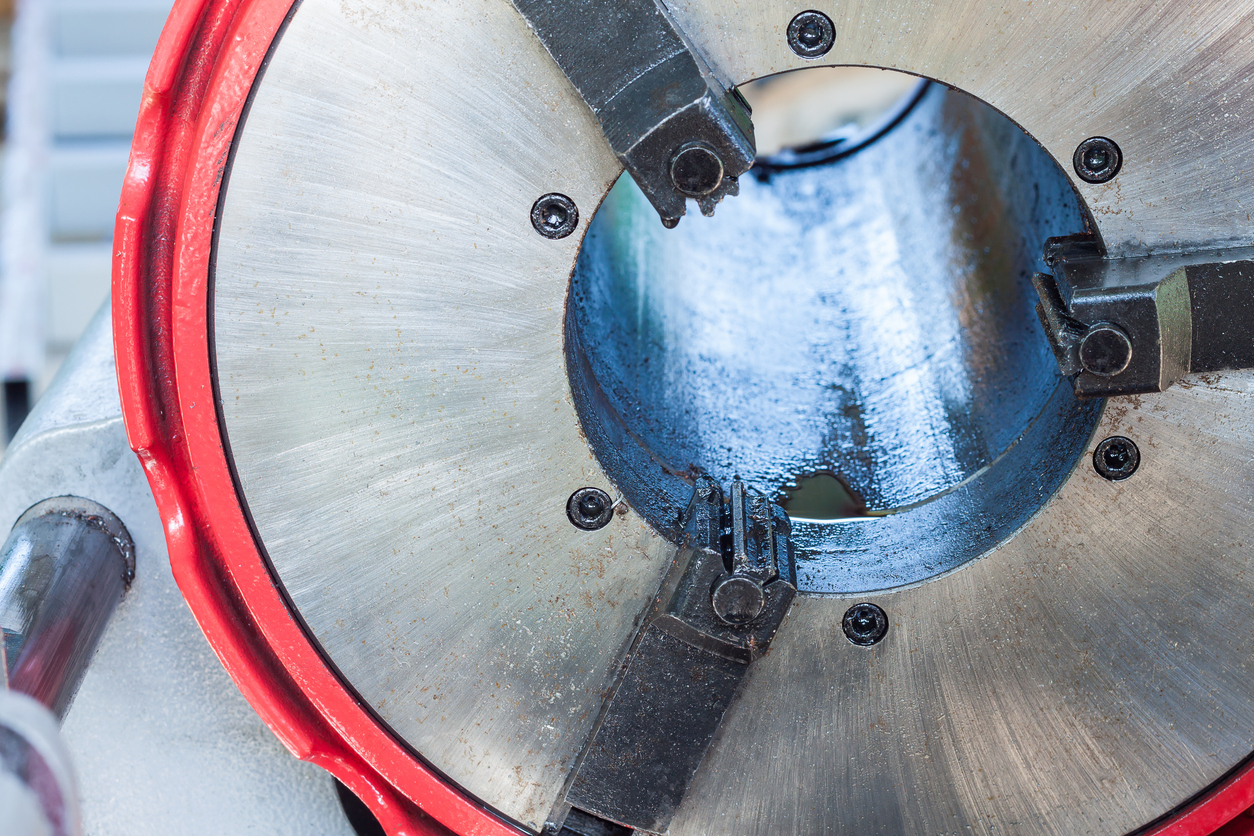

409-842-4404 Pipe Beveling Machines: Types, Uses & How to Choose
Key Takeaways
- A pipe beveling machine delivers the same angle and root face on every joint, which raises NDT pass rates and keeps you code-compliant. Hand grinding and torching cannot match that consistency.
- ID-mounted machines suit repetitive shop end prep and counterboring. OD-mounted clamshells suit field work and blocked-access pipe.
- Match the machine’s tooling to your alloy and bevel profile (V-bevel or J-prep) for clean automated welds and lower filler-metal cost.
- Cold-cut beveling removes the sparks, airborne dust, and vibration risk (HAVS) that come with hand grinding.
- Spec by pipe OD, wall thickness, and throughput, and the right machine usually pays for itself within the first major project.
Why use a pipe beveling machine instead of grinding or torching?
Hand grinding and torch cutting have been the default for pipe edge prep for decades, but they have real limits. A torch leaves a heat-affected zone (HAZ), a band of metal whose properties have changed under high heat, so you often have to grind it back before you can weld. Hand grinding depends entirely on the operator’s hand, which means uneven angles, inconsistent root faces, and poor root penetration.
For a shop manager or a field piping crew, a mechanized beveling machine takes those variables off the table. A clean, repeatable bevel is one of the biggest factors in passing non-destructive testing (NDT). Welding codes such as ASME B16.25, which defines the end prep itself, along with the qualified procedures behind ASME Section IX and API 1104, all depend on consistent joint geometry. When you standardize prep with a machine, you remove the human error that causes most weld failures. The rest of this guide shows how to pick the machine that fits your work.
ID-mounted vs. OD-mounted pipe bevelers: what is the difference?
The first decision is how the machine grips the pipe, because that drives setup, capability, and where you can use it.
Inside diameter (ID) mounted bevelers use an expanding mandrel that locks into the bore of the pipe. The mandrel self-centers the cutting head so it stays concentric with the pipe, which gives you a uniform land (the flat, unbeveled face at the root) on every joint. ID-mounted machines shine in shops doing repetitive end prep, facing, and counterboring, and they are a common choice for high-purity stainless work in food, dairy, and pharmaceutical piping where internal alignment matters.
Outside diameter (OD) mounted bevelers, often called clamshells or split-frame machines, clamp around the outside of the pipe. They can cut and bevel in one setup, which makes them the go-to when you cannot get inside the pipe, such as live pipeline maintenance, subsea tie-ins, or spools with flanges already welded on. Because they sever and bevel together, OD machines cut field prep time and keep a small footprint on crowded job sites.
Portable vs. stationary pipe beveling machines
Your production environment decides whether it makes more sense to bring the pipe to the machine or the machine to the pipe.
Stationary machines are the backbone of high-volume shops. They are built for continuous feed and identical tolerances across hundreds of cuts a shift, with the rigidity to machine heavy-wall pipe without chatter. They drop into automated handling lines so one operator can process a lot of material without heavy lifting. This is where a custom-built bench machine pays off.
Portable machines bring shop-grade precision to the field for shutdowns, rig work, and tight-clearance repairs where the pipe is already fixed in place. Power source matters here. Pneumatic (air) motors are the safe choice in flammable or hazardous areas because they run spark-free. Hydraulic units deliver the steady torque needed to cold-cut heavy-wall alloys without stalling. Electric motors are the simple plug-and-play option where you have reliable power.
Matching the bevel profile to your weld (V-bevel and J-prep)
The machine you choose has to produce the joint your welding procedure (WPS) calls for, in line with American Welding Society (AWS) joint designs.
Standard V-bevels, usually cut at 37.5 or 30 degrees, cover most manual stick (SMAW) and TIG (GTAW) welding. More advanced processes ask for more. Automated orbital TIG and narrow-gap welding need a J-prep, a bevel with a curved radius and a steep sidewall that shrinks the volume of the weld groove. That smaller groove uses less filler metal, cuts weld time, and puts less heat into the base metal, which reduces distortion.
Tooling has to match the metal. Plain carbon steel cuts easily. High-nickel alloys like Inconel, Hastelloy, or duplex stainless need coated carbide inserts, a rigid setup, and controlled speeds to avoid work hardening and chatter that can ruin the finish.
Key specs to match to your operation
Spec a beveler against your real daily work. Over-spec and you waste capital. Under-spec and you face stalls, fast tool wear, and delays.
Start with pipe outer diameter (OD). Machines are rated for size ranges, so a clamshell built for 36-inch pipe is the wrong tool for 4-inch boiler tubes.
Next, look at wall thickness. Heavy-wall pipeline and steam work needs strong gearboxes and high-torque motors that hold cutting speed deep in the cut.
Finally, weigh throughput and cycle time. An automatic beveler may cost more up front, but if it turns twenty minutes of grinding into three minutes of machining per joint, the labor savings pay it back quickly. Factor in cutter-bit cost and life too, since consumables are your main ongoing expense.
Safety and ROI: what a bevel machine really saves you
Swapping a hand grinder for mechanized cold cutting changes shop safety right away. Grinders throw hot sparks and fine, breathable dust, and the constant vibration carries a long-term risk of hand-arm vibration syndrome (HAVS). A beveling machine produces heavy chips instead of airborne dust and moves the physical strain off the operator and onto the machine.
The financial return comes from fewer defects and less waste. When a welder gets a perfectly machined land and a consistent angle, failed X-rays and ultrasonic rejects drop sharply.
To size up your own return, work through a quick framework:
- Add up the labor hours your crew spends each week grinding and prepping pipe ends.
- Apply the fully burdened hourly rate of your skilled fabricators.
- Add the historical cost of weld rejects: gouging out bad welds, wasted material, and re-welding.
- Compare that total against the machine’s cycle time and the ongoing cost of cutter bits.
In most shops, the machine pays for itself inside the first major project.
Choosing the right pipe beveling machine for your shop
Better weld prep is one of the most direct ways to lift throughput, protect your crew, and stay on the right side of code. The right machine turns a slow, manual bottleneck into a real advantage.
At Manufacturing Solutions Industries (MSI), we build durable, easy-to-operate pipe beveling machines in the USA, customized to your pipe sizes, alloys, and welding processes. Many of our machines run on a simple foot pedal, so a new operator can get clean results with little training. A stock product page only tells you so much, so our engineers will look at your actual production setup and spec the machine that fits it. Contact MSI for a fabricator ROI consultation or a machine demo, and take the first step toward clean, repeatable weld prep.
